WHABB203 Triple stage filter system with S/S cover

20" Big Blue Triple Housing with Stand PP Sediment supported NANO-ZINC,(   INHIBIT BACTERIA)  Activated Carbon Block Filters

 Easy to install.
• Large capacity for carbon cartridge.
• Removes sediment.
• TRIPLE Stage which means longer cartridge life.
• Excellent chlorine, taste & odour reduction reduction.
• Peace of mind with whole house filtration.
• No moving parts.
• No chemicals.
• Low maintenance.
• Protects and prolongs life of appliances.
• No power required.

20" Big Blue Whole House Water Filtration System - this water treatment system treats all of the water entering your home, removing sand, silt, sediment, rust, and other particles that can damage your water softener, prematurely foul carbon filters or ruin the plumbing fixtures and valves. This Dual Water System effectively eliminates many impurities from tap water to offer sparkling clean and great tasting water throughout your whole house.

WATER FLOW 70 LITERS PER MINUTE SUIT FOR ALL WHOLE HOUSE  SUITABLE FOR  ANY FLOW  0-100 LPM

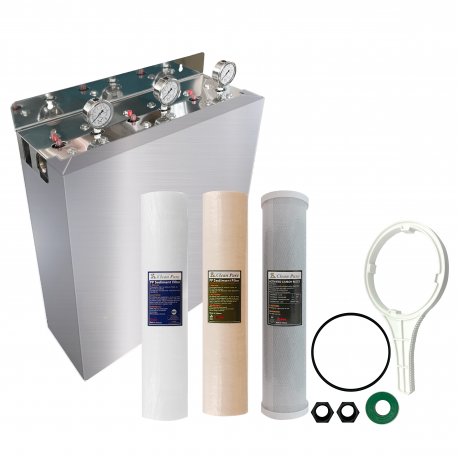

Kit includes
1X (20"-4.5") Big Blue Triple Water Filter Housing
3X Gauge
1X (20"-4.5") PP Sediment supported with NANO-ZINC HIGH FLOW
1X (20"-4.5") CTO HIGH FLOW

1X (20"-4.5") PP Sediment HIGH FLOW
1X Metal Bracket Heavy Duty
2X (1" To -3/4") Bushing
1X Housing Wrench
1X Extra O ring for the future replacement
1X Teflon Tape

20" x 4.5" Triple Big Blue Whole House Water Filter System Complete with Hard Water Conditioner  STAINLESS STEEL  BRACKET WITH STAND

AS THIS FILTER SET HAS  NANO ZINC AND  SEDIMENT FILTER SET  YOU WONT NEED UV STERILIZER OR SOFTER

20" X 4.5 Big Blue Triple Housing with Stand
Size: 63.3(W) x 80(H) x 21.8(D)
Weight: N.W. 20.98kg / G.W. 22.66kg

WATER FLOW 70 LITERS PER MINUTE SUIT FOR ALL WHOLE HOUSE  SUITABLE FOR  ANY FLOW  0-100LPM

OUTPUT SIZE 1" 25mm  ALSO  COMES WITH FREE 3/4 " REDUCING VALVE

PRODUCT IS FULLY ASSEMBLED

 PP Sediment Supported with NANO-ZINC WITH  5 MICRON

- HIGH FLOW  Polypropylene filter ( 5M) for removal of sand silt, Dirt and Rust particles, bacteria   For water use only.
- Formed by thermal bond without use of any binders and adhesives.
- Maximum Temperature Range: 125°F (52°C)
- Dimensions: 20" x 4.5"
- Filters are individually wrapped
*Pressure drop will be determined based on feed water pressure, filter cartridge selection and port sizes, fluid viscosity, filter life and conditions.

 CTO Carbon Block Filter 5MICRON  WITH 70 LITERS PER MINUTE  FAST FLOW

- HIGH FLOW  Coconut Shell Activated Carbon Block Filter.
- Chlorine, taste , and odour sediment reduction.
- No release of carbon fines
- Material conforms FDA grade.
- This Filter Cartridge is Tested and Certified by NSF International against NSF/ANSI Standard 42 for material requirements only.
- Max. Pressure: 120 psi
- Max. Temperature: 104°F
- Suggested Life: 28000 gal
*Cautions: Flushing for 5 minutes prior to use.
*Warning: For water use only

*Pressure drop will be determined based on feed water pressure, filter cartridge selection and port sizes, fluid viscosity, filter life and conditions.

 Sediment Polyspun Filter  5 MICRON WITH 80 LITERS PER MINUTE  WATER FLOW

- Three-layers structure cartridge, High contaminant holding capacity.
- 100% PP Polypropylene for compatibility with a wide range of process fluids.
- 5 Micron, Micro-Denier™ melt-blown filtration fiber, high removal ratings. removes sediment, rust , algae removal
- Formed by thermal bond without use of any binders and adhesives.
- This Filter Cartridge is Tested and Certified by NSF International against NSF/ANSI Standard 42 for material requirements only.
- Maximum operating pressure: 125 PSI
- Operating Temperature Range: 125°F (52°C)
- Dimensions: 20" x 4.5"
- Filters are individually wrapped
*Pressure drop will be determined based on feed water pressure, filter cartridge selection and port sizes, fluid viscosity, filter life and conditions.
