Lab Pua Triple Header Series Sediment With Full Carbon Block With Scale Inhibitor

LPA-SD5-17+LPA-CB5-17+LPA-CS5-17

New product

Lab Pua Triple Header Series Sediment With Full Carbon Block With Scale Inhibitor

More details

Each: $315 tax incl.

More info

LPA function.png


LPA SD5 17

SPECIFICATIONS

Service Flow Rate
2.5 GPM (7.94 L/min)

Rated Capacity

21,000 Gallons (79,484 L)

Operation Temperature

4 ~ 38℃ (39 ~ 100℉)

Pressure Requirements
10 ~ 100 psi (0.7 ~ 6.9 bar)

Inlet / Outlet Connection
3/8″

Electrical Connection
None required

Dimension
Overall : 3.7″ × 18.8″
Cartridge : Ø3.3″ × 17.4″

Weight
0.7 kg

Claim
Particle, Dust and Sand, etc



FEATURES · BENEFITS

• Pretreatment filtration (PP, Melt Blown Type)

• Can remove up to 5micron particles through mechanical method.

• Replacement method is very simple, quick and clean.

lpa 17-25.jpg

lpa 17 2-30.jpg

LPA-CB5-17

SPECIFICATIONS

Service Flow Rate: 2.1 GPM (7.94 L/min)
Rated Capacity: 21,000 Gallons (79,484 L)
Operating Temperature: 4–38°C (39–100°F)
Pressure Requirements: 10–100 psi (0.7–6.9 bar)
Inlet / Outlet Connection: 3/8″
Electrical Connection: Not required
Dimensions:

  • Overall: 3.7″ × 18.8″

  • Cartridge: Ø3.3″ × 17.4″
    Weight: 1.0 kg


Claims
Effectively reduces:

  • Chlorine

  • Taste and Odor

  • Particulates (Class 1: 0.5–1.0 µm)


Features & Benefits

  • HNN's carbon block is made using high-quality and high-volume GAC, providing more stable water quality and greater capacity compared to competitors.

  • 5-micron CTO carbon block offers effective filtration.

  • Extrusion carbon production method ensures consistent and reliable performance.

  • Pre-shield technology helps prevent early clogging and extends filter life.

  • Quick-change design enables easy and fast replacement.




LPA CS5 17

SPECIFICATIONS

Service Flow Rate: 2.1 GPM (7.94 L/min)
Rated Capacity: 21,000 Gallons (79,484 L)
Operating Temperature: 4–38°C (39–100°F)
Pressure Requirements: 10–100 psi (0.7–6.9 bar)
Inlet / Outlet Connection: 3/8″
Electrical Connection: Not required
Dimensions:

  • Overall: 3.7″ × 18.8″

  • Cartridge: Ø3.3″ × 17.4″
    Weight: 1.1 kg


Claims
Effectively reduces:

  • Chlorine

  • Taste and Odor

  • Particulates

  • Scale (via phosphate inhibitor)


Features & Benefits

  • Contains phosphate to help prevent scale buildup in boilers or heaters.

  • 5-micron CTO carbon block provides efficient contaminant filtration.

  • Extrusion carbon production ensures consistent and reliable quality.

  • Pre-shield technology prevents premature clogging, extending filter life.

  • Quick-change design enables easy and convenient replacement.

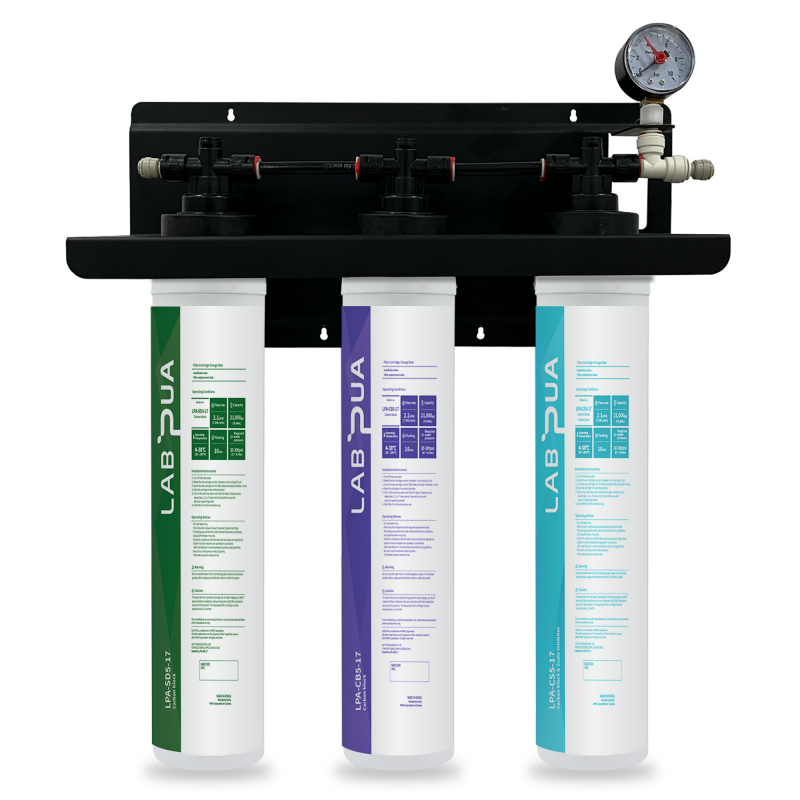

TRIPLE HEADER

Model : LPA338QC

Dimension : 450x255x125(WxHxD)
