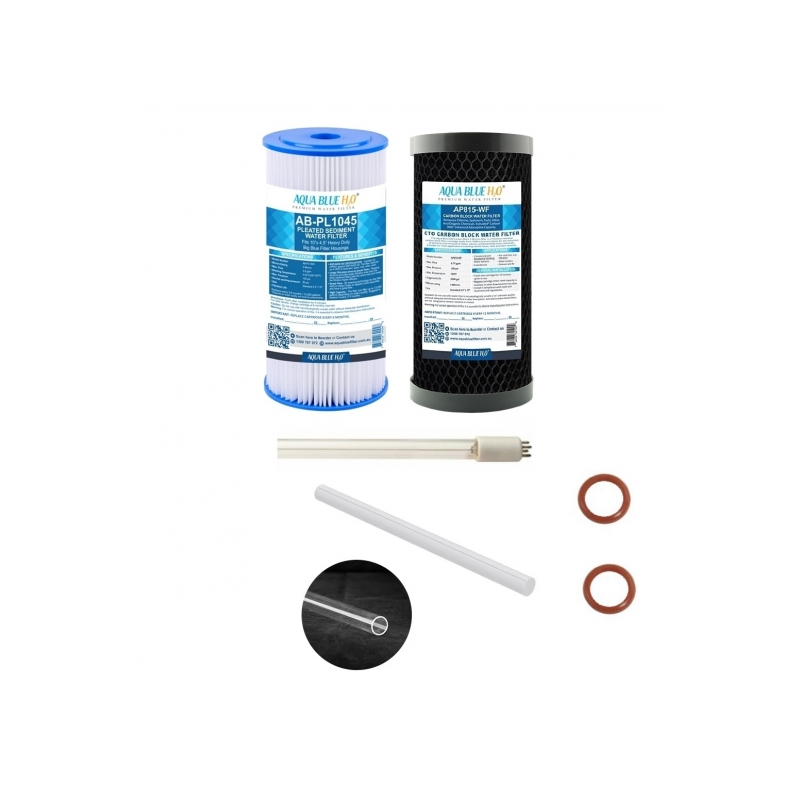

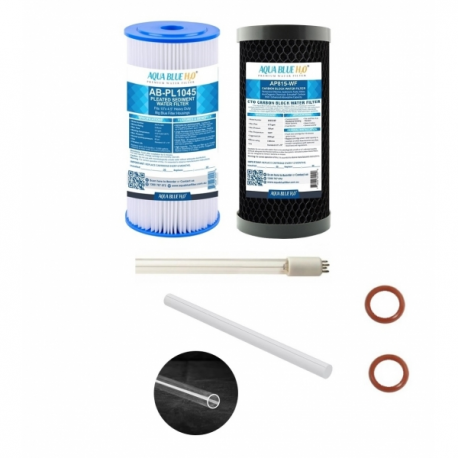

Hybrid G6 Replacement Water Filter , Lamp, Sleeve with 2 Orings

Alternative Puretec Hybrid G6 Replacement Water Filter Cartridges

Generic replacement parts compatible with Puretec Hybrid G6 system – filters, lamp, sleeve, and O-rings. Affordable alternatives to genuine Puretec G6 replacement parts.

Models: PL05MP1, DP10MP1 (10 inch)

This listing includes:

• ABPL1045-10MIC – replaces sediment filter PL05MP1
• ABCTO1045-5MIC – replaces carbon filter DP10MP1
• UVGUARD 11066 – replaces lamp RL6
• UVGUARD 21017 – quartz sleeve RQS6
• 2 x O-ring UV 40mm ID x 5mm – seal part 31057

Premium Big White Big Blue 5 Micron Carbon Block Filter (10" x 4.5") – AP815-WF

The Aqua Blue H20 Carbon Block 5 Micron filter is a premium nominal carbon block filter cartridge made from 100% coconut carbon for the reduction of chlorine, and removal of tastes, odours, and potentially toxic chemicals. Suitable for most applications, including whole house, tank, and dam systems.

Coconut Carbon Block Water Filter

The Aqua Blue H20 Carbon Block 5 Micron filter is a premium nominal carbon block filter cartridge made from 100% coconut carbon for the reduction of chlorine and removal of tastes, odours, and potentially toxic chemicals. Suitable for most applications, including whole house, tank, and dam systems.

Features & Benefits:

• Effectively reduces unwanted tastes, odour, and chlorine
• Provides cleaner, softer water for bathing, cleaning, and washing
• No channeling, fluidizing, or bypassing
• Maximum service life and resistance to fouling
• Protects other water filters, heaters, and appliances from sediment

Applications:

Pure Coconut Carbon Block Filters are made from high-performance coconut shell carbon, unique binders, and industry-leading manufacturing processes to deliver trade-quality carbon block filters. They offer exceptionally low pressure drop, high dirt holding capacity, and excellent contaminant reduction.

Pure Carbon Blocks are NSF/ANSI 42, 53, and 61 compliant for:

• VOC’s
• THM’s
• Lead & heavy metal reduction
• Chloramine reduction
• Chlorine taste & odour reduction
• Purity & safety of materials

The unique pore structure of 100% coconut shell carbon is well-suited for chemical absorption, including VOCs, while reducing chlorine and other taste/odour-causing chemicals.

Cartridge Specifications & Performance Data:

• Model: AP815-WF
• Max Flow: 0.75 gpm
• Max Pressure: 120 psi
• Max Temperature: 104ºF
• Suggested Life: 3,500 gallons
• Micron Rating: 5 micron
• Size: Standard 4.5" x 10"

Pressure drop depends on feed water pressure, cartridge selection, port sizes, water viscosity, and filter condition.

Directions for Use: Place cartridge in appropriate 10" x 4.5" housing and flush for at least 5 minutes before use to remove carbon fines.

Warning: Do not use with microbiologically unsafe water without adequate disinfection before or after the system. Follow manufacturer’s instructions for proper operation.

Pleated Sediment Water Filter Cartridge (4.5" x 10")

The pleated sediment filter removes rust, dirt, leaves, dust, particles, clay, and debris from water.

• High-efficiency 5 micron filter
• Ideal for all water qualities
• Suitable for mains, tank, and rainwater
• Washable sediment filter

Hybrid UV Lamp

• Suitable for G / R series
• Size: 520 mm
• Connection: 4 pin
• Power: 46W

High-quality replacement UV lamp compatible with Puretec Hybrid G6, G7, and R1, R2, R10, R11 systems. Packaged for safe delivery Australia-wide.

Model: 11066 UV GUARD (Replaces Puretec RL6 46/55W 4 Pin UV Lamp GH0520T5L RL6)

• Replaces GH0520T5L RL6 UV globe
• Compatible with Puretec Hybrid G6, G7, G8, G9, R10, R11, and G13 systems
• 4-pin connection at one end
• Power: 46–55 watt
• Dimensions: 525 mm (including pins) x 18.5 mm

Quartz Sleeve & O-Rings

• 21017 Quartz Sleeve (RQS6)
• 2 x 31000 O-Ring Seals (40mm ID x 5mm)
