EVERPURE® MR-350 REPLACEMENT CARTRIDGE

MR-350 Replacement Cartridge: EV9627-07

• Coffee

• Flash and conventional steamers

• Espresso

• Combi ovens

• Reconstitution

• Multiple applications

• Ice

• Mineral reduction cartridge for high TDS waters

• Sanitary cartridge replacement is simple, quick and clean. Internal filter parts are never exposed to handling or contamination

• A reduction in Total Dissolved Solids (TDS) makes the water less likely to impart undesirable tastes in beverages, sauces, soups and other food products

• Improves equipment life and performance by removing at least 90%+ of all dissolved solids using Reverse Osmosis Separation Technology

• Especially useful on steamers, warmers, steam boilers and other evaporative equipment that are not emptied each day

• Heating surfaces maintain peak heat transfer efficiency, reducing cycle times and energy consumption

• Limits limescale buildup, which can cause excessive machine downtime and maintenance costs

INSTALLATION TIPS

• Install vertically with cartridge hanging down

• Allow 2-1/2" (6.35 cm) clearance below the cartridge for easy cartridge replacement

• Use piping materials suitable for high-purity water after MRS system

• Proper pre-treatment is required to control MR cartridge (membrane) scale formation and/or fouling

• Raw water hardness in excess of seven (7) grains per gallon should be softened to extend cartridge life

• The raw water may contain chlorine or other oxidizers and the use of a carbon pre-filter is recommended

OPERATION TIPS

• Change MR cartridge on a regular 24 month preventative maintenance program

• Change MR cartridge when output capacity diminishes by 15%, or when output pressure becomes too low

• Always flush the filter cartridge at time of installation and cartridge change

• Contact Pentair Technical Service for pre-treatment recommendations

• Refer to Installation, Operation & Maintenance Manual for cartridge flushing and RO startup

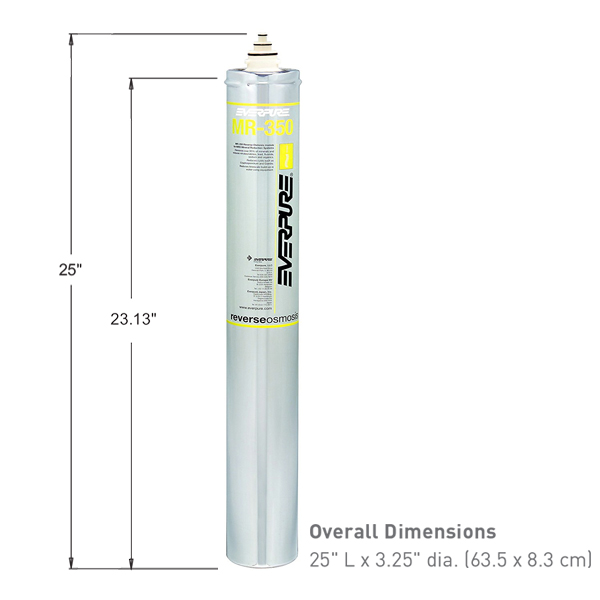

• Overall Dimensions: 25" L x 3.25" dia. (63.5 x 8.3 cm)

• Rated Capacity: 350 gallons per day (1,324 Liters per day) Nominal. Water pressure, feedwater quality and temperature will effect actual daily production rate

• Service Flow Rate: Dependant on water volume and pressure in storage tank(s), and line size(s) to equipment

• Pressure Requirements: 40 - 100 psi (2.7 - 6.8 bar), non-shock

• Temperature: 35 - 100°F (2 - 38°C)

• Inlet TDS: 1,500 ppm max recommended
